Tripod with tubular aluminium legs for lowest possible weight. Four eye bolts in the head that can be used as anchor points. Tripod is adjustable from 1.35 to 2.35 metres. Tripod is meant for two people, with a total weight of 500 kg. To be used in combination with winch and rescue set Rollgliss or SRL Weight 14.5 kg. Without carrying bag: 1003772.

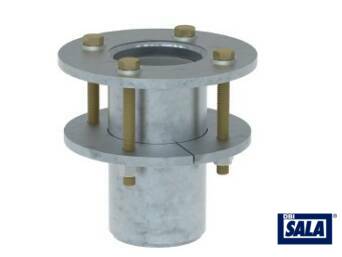

Floor mount base high capacity in galvanised steel. Fixed base for high capacity davit arm. Horizontal structure on concrete or metal. When used with davit arm, in line with: EN795 type A, EN1496 Class B.
Aluminum tripod with two anchor points and one pulley in the head, adjustable height from 1.52m to a maximum of 2.9m. Weight: 15kg. Max. capacity: 500kg. Equipped with a built-in winch mount and supplied in a convenient carrying bag.
Aluminum tripod with two anchor points and one pulley in the head, adjustable height from 1.15m to a maximum of 2.15m. Weight: 13kg. Max. capacity: 500kg. Equipped with a built-in winch mount and supplied in a convenient carrying bag.
Long reacht davit arm with a range of 70cm to 113cm high capacity. Short and long reach davit arm high capacity can only have 1 davit mast extension. Complete davit (mast extension + davit arm) can be used on any fixed or portable davit base high capacity. Authorised SRL and winch can be mounted front or back whether on the universal lower mast or davit mas extension. Can be used for persons as well as loads with a maximum of 205 kg with portable bases, or 340 kg with fixed bases. For fall arrest applications: 2 users (max 140kg max each), for rescue applications: 1 user (max 140 kg max.).
Floor base for davit arm with boom. For permanent attachment to concrete or a metal construction. Opening for davit fitted with hard PVC sleeve to allow davit arm to pivot more smoothly. W 30,48 x L 30,48 x H 24.1 cm. Other floor bases or a mobile base for the davit arm are available on request.
U-shaped base for Davit arm. Width adjustable from 1,9m - 2,6m.
Davit mast 533 mm, to be combined with boom, base, fall-block and/or descent winch and accessories.
Mast adjustable from 1.20 to 2.13 m with rotating head & materials. Including bracket for a winch. Ideal for applications where where a tripod cannot be used. Can be suspended from anchor point in ceiling or other structure. Combined with base (Art: 1026260) and winch or fall-block.
T-shape base for extendible davit arm.
Mast adjustable from 1.8 to 3.05 m with rotating head & materials. Including bracket for a winch. Ideal for applications where where a tripod cannot be used. Can be suspended from anchor point in ceiling or other structure. Combined with base (Art: 1026260) and winch or fall-block.
Davit arm with boom. Davitarm and base system includes adjustable upper mast, lightweight lower mast and 3-piece lightweight base. Includes mounting bracket for a winch. Order winch and SRL separately. Boom has a universal anchor point for fall-blocks or safety line. In combination with the adapters, fall-protection blocks with or without winch or permanent winches, can also be mounted to the davit. Boom has two roller wheels to guide cable of fall-protection block or winch. The boom is extendible in different positions. Height with boom: max. 2542 mm.
Jib system to attach on I-beam on the job site, mounting clamps, plates and hardware included with the system. It rotates 180° and locks every 7 ,5°. Installed glide 360° rail with trolley. Offsett: 6,1m. As anchorage point for 1 person. PRICE WITHOUT TRANSPORTATION COST!
Fixed foot for mounting telescopic davit arm.
Davit arm with a range of 720 mm, high capacity. Short and long reach davit arm high capacity can only have 1 davit mast extension. Complete davit (mast extension + davit arm) can be used on any fixed or portable davit base high capacity. Authorised SRL and winch can be mounted front or back whether on the universal lower mast or davit mas extension. Can be used for persons as well as loads with a maximum of 205 kg with portable bases, or 340 kg with fixed bases. For fall arrest applications: 2 users (max 140kg max each), for rescue applications: 1 user (max 140 kg max.).
U-shaped base for Davit arm. Width adjustable from 1,2m - 1,9m.
5-part large Davit arm system, high capacity, suitable for confined spaces. Includes adapter for mounting Lier Advanced. May be used for both persons and, to a limited extent, for loads. Base width: 1927-2613mm, Davit arm height: 2223-2805mm. Capacity: fall arrest 2 users (max 140 kg each), rescue: 1 user (max 140 kg), max load weight: 205 kg. Complies with: EN3795 type B, EN1496 class B
Floor foot for Davit arm to be secured to concrete structures. The flat design ensures that there is no danger of stumbling. When used together with davit arm, complies to EN795 type A, EN1496 Class B
Counterweight base high capacity with cart, as base for davit arm.
Modular Jib system features a simplified design that enhances worker safety in mulitple applications. Increased rail-lenght configurations improve working coverage while a new design facilitates easier system transport. Fail-safe mast lock, increased height, extended reach, powder coated and galvanised components. Height: 4,6-7,6M, offset reach: 2,3m. PRICE WITHOUT TRANSPORTATION COST!
Height adjustable mast for 1 user. Height-adjustable masts can be easily adjusted using the integrated winch or with a drill fitted with a slip clutch (accessory). Height: 3m - 4.6m. Offset/range: 2.3m. PRICE WITHOUT TRANSPORTATION COST
Semi-fixed height, single user mast. Semi-rigid masts have a limited (1.5 m) adaptability to optimize the anchor height during installation. Height: 4,6 m - 6,1 m. Offset/range: 3,7 m. PRICE WITHOUT TRANSPORTATION COST!
Semi-fixed height, single user mast. Semi-rigid masts have a limited (1.5 m) adaptability to optimize the anchor height during installation. Height: 5,3 m - 7,6 m. Offset/range: 3,7 m. PRICE WITHOUT TRANSPORTATION COST!
Height adjustable mast for 2 users. Height-adjustable masts can be easily adjusted using the integrated winch or with a drill fitted with a slip clutch (accessory). Height: 4,5m - 6,1m. Offset/range: 3,7m. PRICE WITHOUT TRANSPORTATION COST!
Height adjustable mast for 1 user. Can be easily adjusted using the integrated winch or with a drill fitted with a slip clutch (accessory). Height: 3,8m - 6,1m. Offset/range: 2,3m. PRICE WITHOUT TRANSPORTATION COST!
